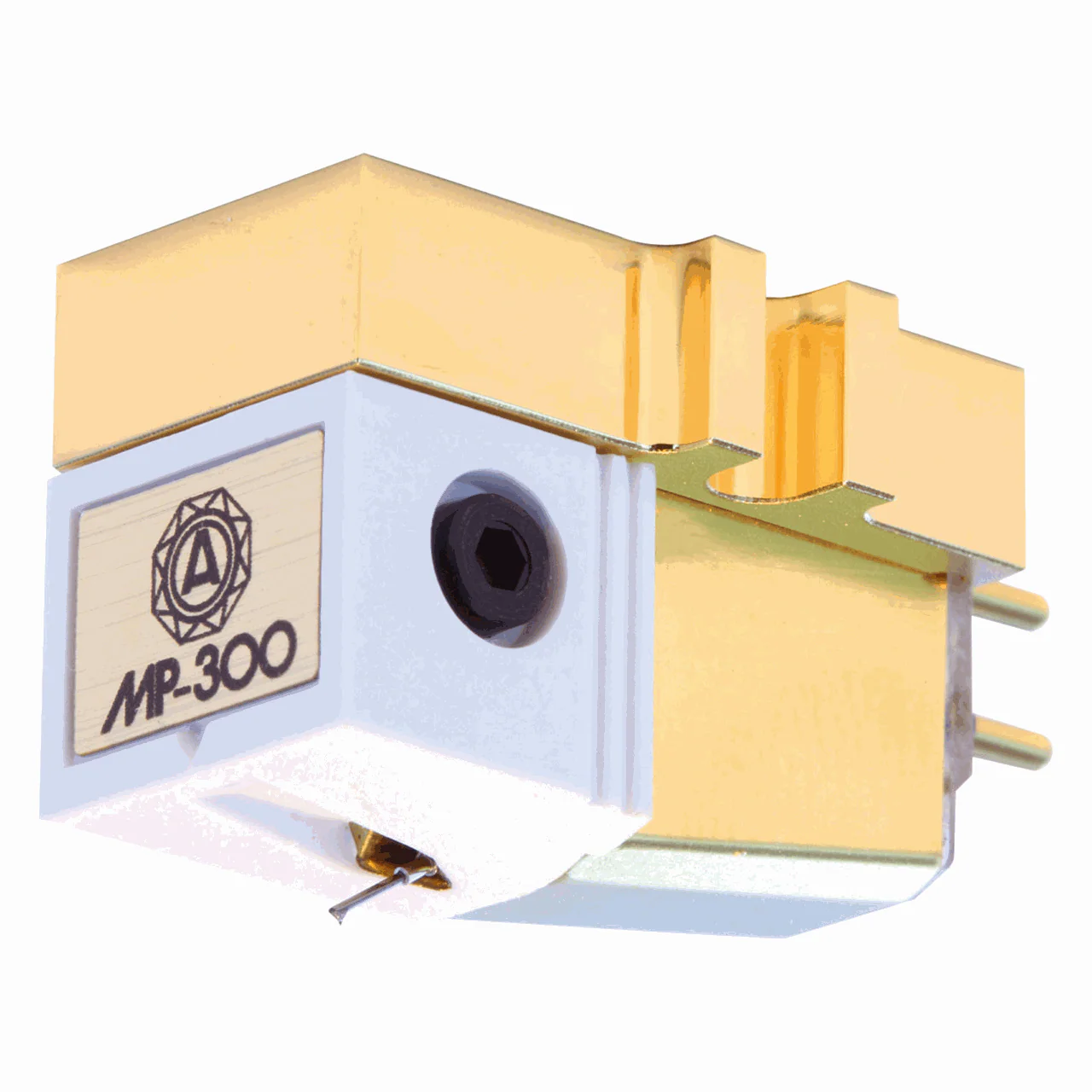

Nagaoka MP-300 Cartridge

The Nagaoka MP-300 phonograph cartridge offers sophistication, refinement and high-definition at all audible frequencies thus making it one of our favorite phonograph cartridges. It is nimble on the grooves and easy on the ears so you keep on wanting to listen. The Nagaoka MP300 is an advanced technology cartridge that is destined to become a classic out of the box.
Features
-Exclusive super rigid body for ultra resonance and superb fidelity
-Superfine polished special eliptical bonded diamond stylus
-Powerfull samarium cobalt magnet
-Hardened low-mass, high strenght boron cantilever
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Specs

•Principle: MM
•Cantilever: High-strength boron

•Frequency response: 20 - 25,000 Hz
•Channel balance: better than 1.0 dB
•Channel separation: better than 25 dB at 1kHz

•Output voltage: 4 mV (5 cm/sec)
•Tracking force: 1.3 - 1.8 g
•Impedance: 47 000 ohms
•Dynamic compliance: 7.2 x10-6/dyne
•Static compliance: 20 x10-6/dyne
•Weight: 8.0 g
•Mounting: 1/2 inch

•Microsection: super-fine polished, elliptical, bonded diamond

$377.40

Original: $1,078.28

-65%
Nagaoka MP-300 Cartridge—

$1,078.28

$377.40

Product Information

Shipping & Returns

Description

The Nagaoka MP-300 phonograph cartridge offers sophistication, refinement and high-definition at all audible frequencies thus making it one of our favorite phonograph cartridges. It is nimble on the grooves and easy on the ears so you keep on wanting to listen. The Nagaoka MP300 is an advanced technology cartridge that is destined to become a classic out of the box.
Features
-Exclusive super rigid body for ultra resonance and superb fidelity
-Superfine polished special eliptical bonded diamond stylus
-Powerfull samarium cobalt magnet
-Hardened low-mass, high strenght boron cantilever
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Specs

•Principle: MM
•Cantilever: High-strength boron

•Frequency response: 20 - 25,000 Hz
•Channel balance: better than 1.0 dB
•Channel separation: better than 25 dB at 1kHz

•Output voltage: 4 mV (5 cm/sec)
•Tracking force: 1.3 - 1.8 g
•Impedance: 47 000 ohms
•Dynamic compliance: 7.2 x10-6/dyne
•Static compliance: 20 x10-6/dyne
•Weight: 8.0 g
•Mounting: 1/2 inch

•Microsection: super-fine polished, elliptical, bonded diamond
