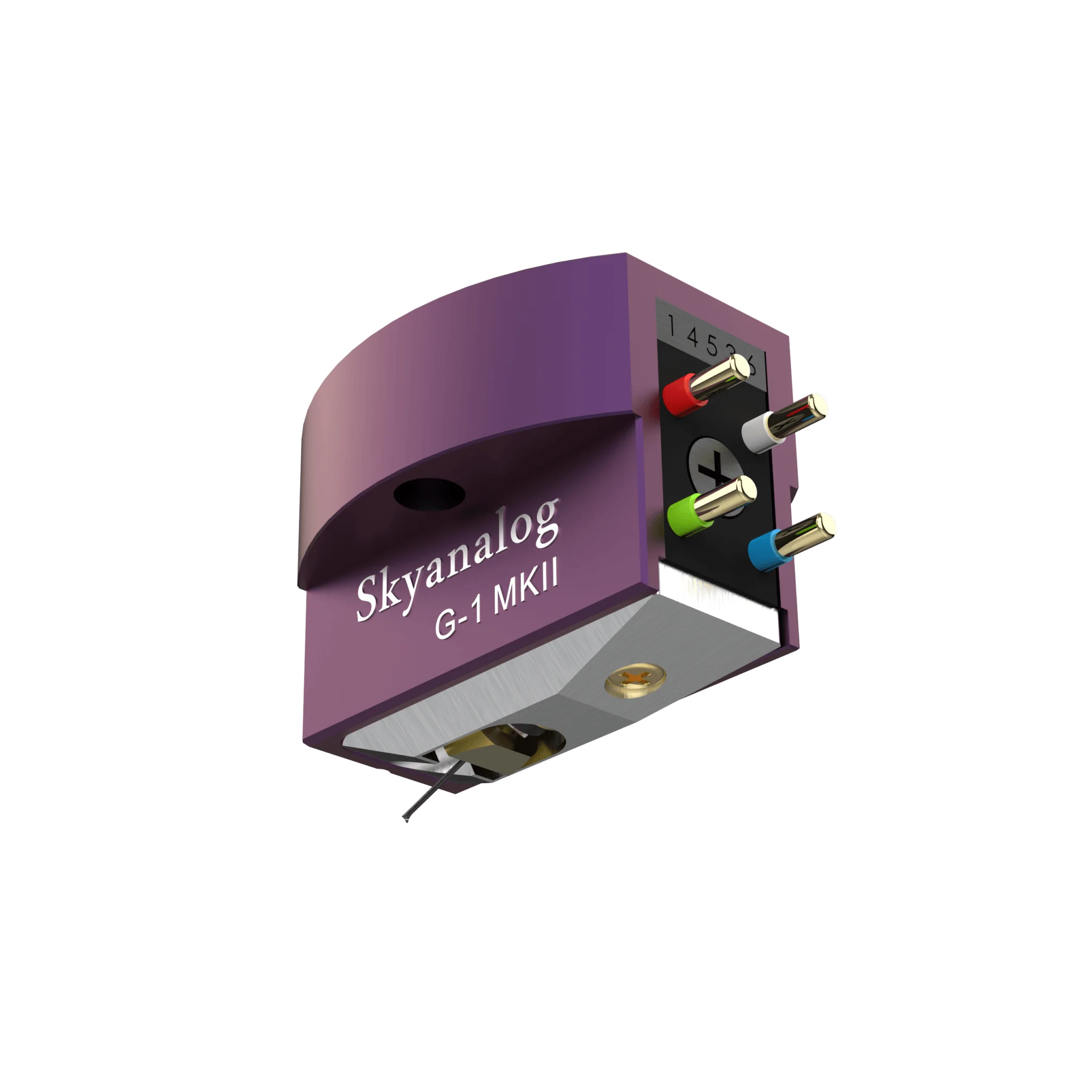

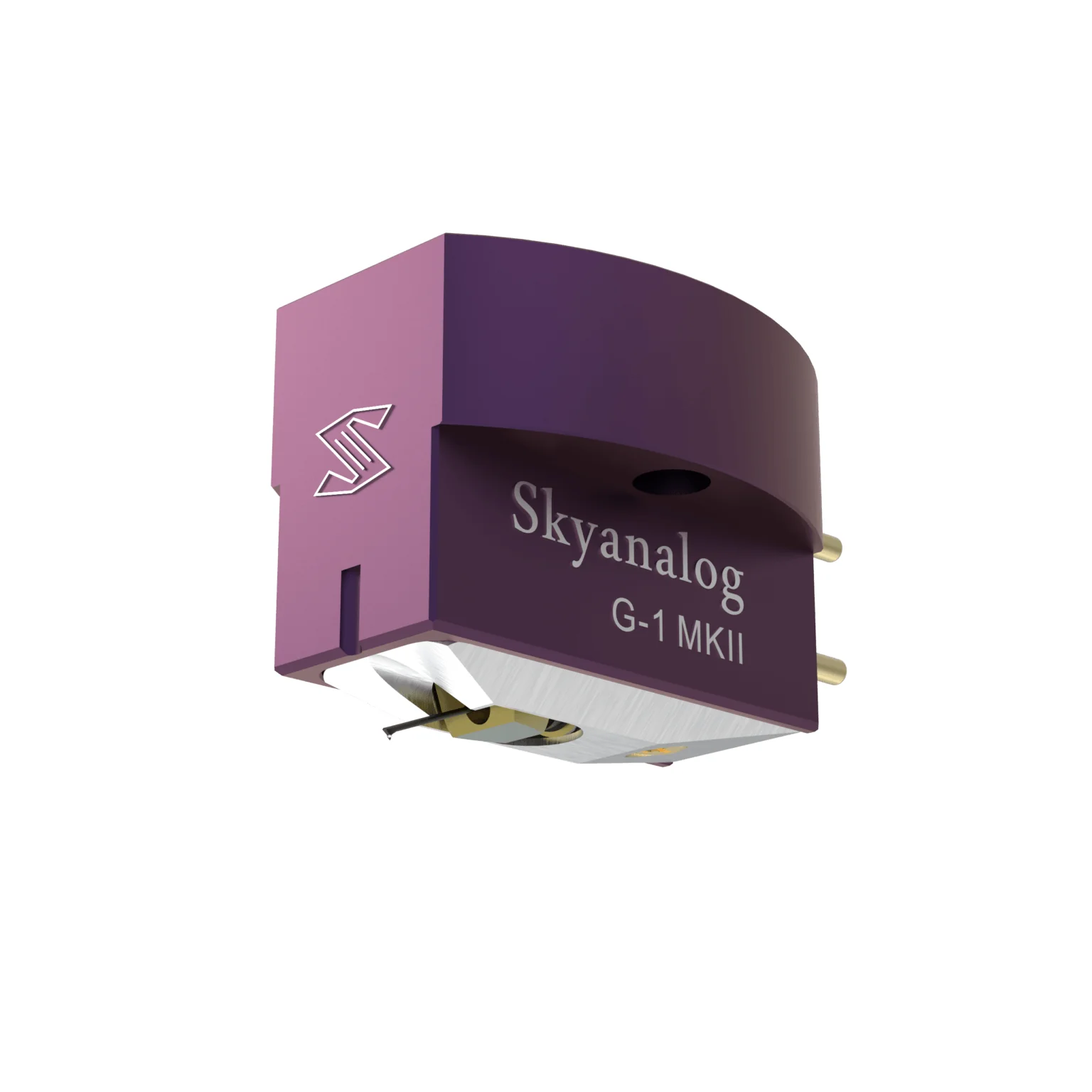

Skyanalog G-1 MC Cartridge

Product image 1
1 / 2

Skyanalog G-1 MC Cartridge

SkyAnalog initially started designing tube amplifiers, much later they started designing High-End MC pickups. The G-series has, among other things, a unique aluminum body and a cantilever of Borium, Ruby or Sapphire.

Specs

MODEL G-1 SPECIFICATIONS

PHYSICAL
Cantilever Boron
Stylus Diamond
Stylus Tip Radius 5 x 150 ”m
VTA Vertical Tracking Angle 20˚
Coil Pure Iron Cross Coil
Weight 10 grams
ELECTRICAL
Output Voltage 0.35 mV @ 3.54 cm/s
Internal Impedance 8 ℩
Frequency Respons 20 – 30.000 Hz +/- 1 dB
Channel Separation ˃ 30 dB at 1 kHz
Channel Balance < 0.5 dB
DYNAMIC
Tracking Ability @ 315 Hz / 2 grams 80 ”m
Dynamic Compliance 10 ”m / mN
SETUP INSTRUCTION
Recommended Load 200 – 470 ℩
Recommended Tracking Force 1.5 – 1.7 grams
Optimum Tracking Force 1.6 grams
Recommended Tonearm Mass Medium
Optimum Working Temperature 23 ˚C
Break-In Period 30 hours

$566.33

Original: $1,618.09

-65%
Skyanalog G-1 MC Cartridge—

$1,618.09

$566.33

Product Information

Shipping & Returns

Description

SkyAnalog initially started designing tube amplifiers, much later they started designing High-End MC pickups. The G-series has, among other things, a unique aluminum body and a cantilever of Borium, Ruby or Sapphire.

Specs

MODEL G-1 SPECIFICATIONS

PHYSICAL
Cantilever Boron
Stylus Diamond
Stylus Tip Radius 5 x 150 ”m
VTA Vertical Tracking Angle 20˚
Coil Pure Iron Cross Coil
Weight 10 grams
ELECTRICAL
Output Voltage 0.35 mV @ 3.54 cm/s
Internal Impedance 8 ℩
Frequency Respons 20 – 30.000 Hz +/- 1 dB
Channel Separation ˃ 30 dB at 1 kHz
Channel Balance < 0.5 dB
DYNAMIC
Tracking Ability @ 315 Hz / 2 grams 80 ”m
Dynamic Compliance 10 ”m / mN
SETUP INSTRUCTION
Recommended Load 200 – 470 ℩
Recommended Tracking Force 1.5 – 1.7 grams
Optimum Tracking Force 1.6 grams
Recommended Tonearm Mass Medium
Optimum Working Temperature 23 ˚C
Break-In Period 30 hours
